Maglock

All diagrams are suggestions. For detailed instructions, please consult the vendor’s hardware manuals and guides. Additionally, it is the installation partner’s responsibility to comply with all life safety codes.

Components

  • Axis Communications Controller
  • Controller Enclosure
  • Credentials
  • Relay Board
  • Door Release
  • REX
  • Power Supply
  • Card Reader

Considerations

  • Relay board has fire alarm input connection
  • Follow local AHJ standards for push button requirements
  • Door requires a cat 6 and an 18/4awg

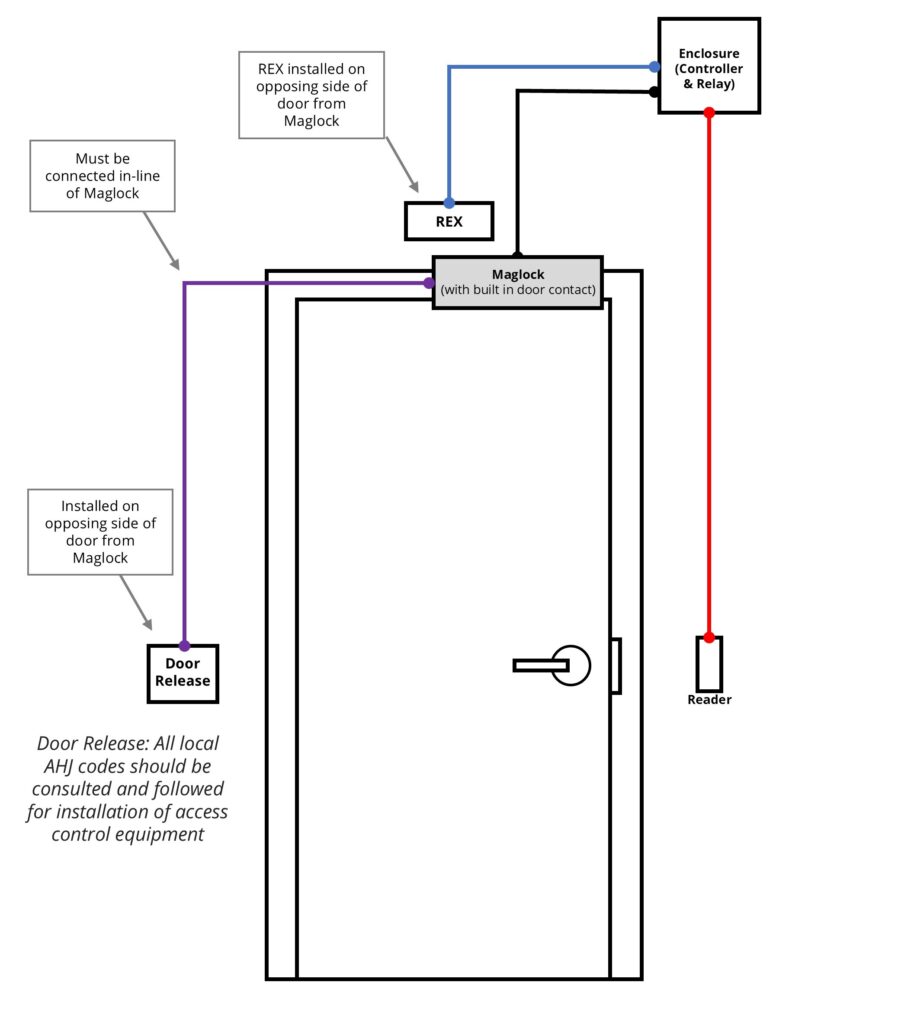

Diagram

  • Cat 6 to Door Controller
  • Purple: 18/2
  • Blue: 18/4 or 22/4
  • Black: 18/4
  • Red: 18/6 or 18/4 shielded

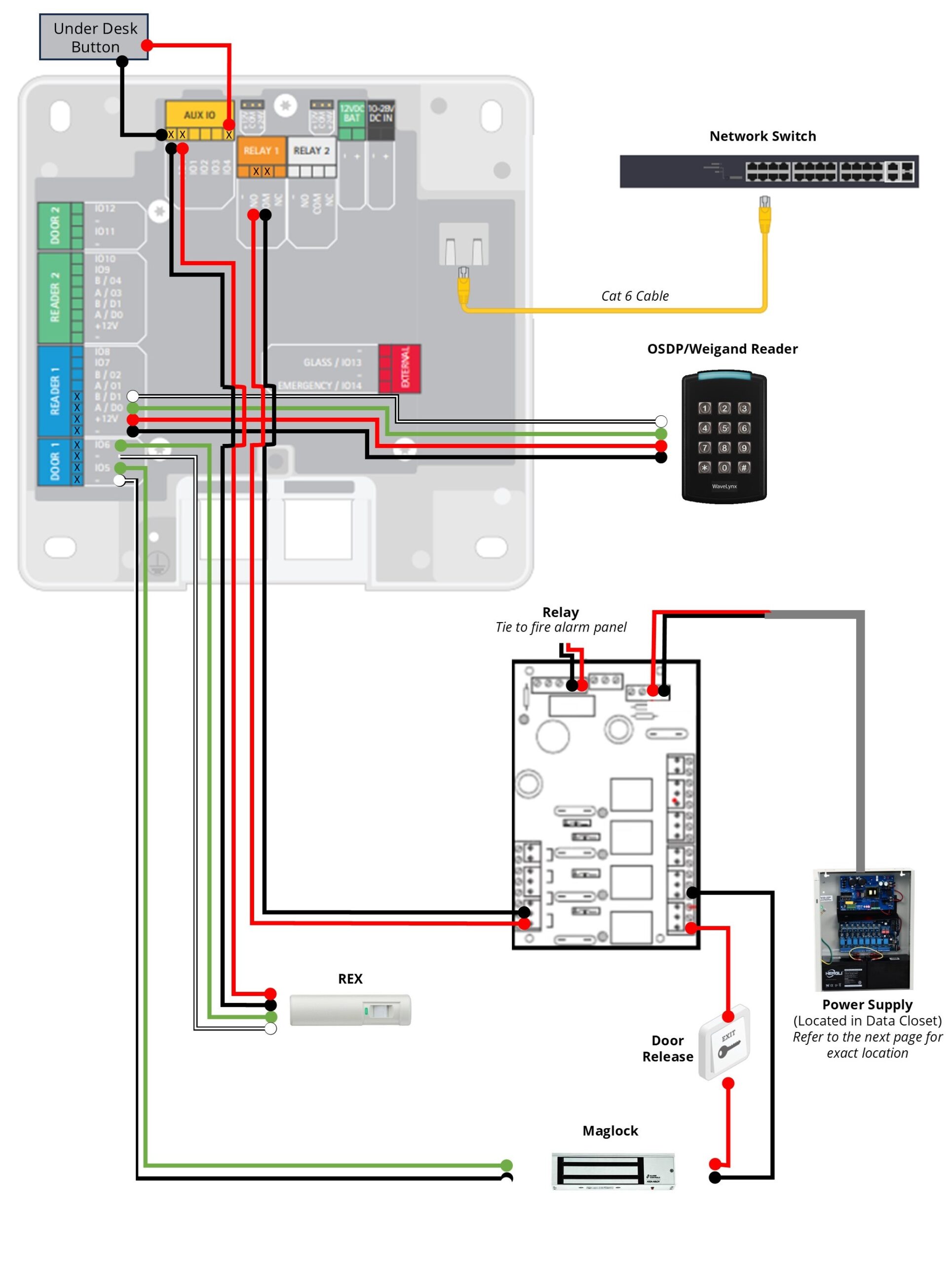

Wiring

Power Supply
